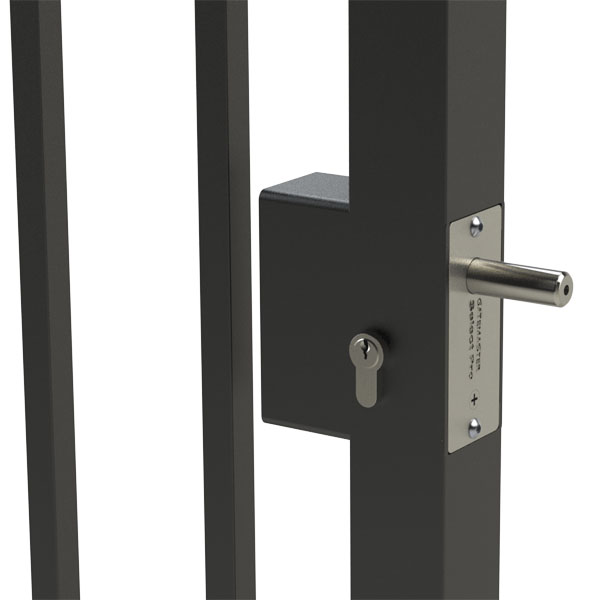

Weld-In Deadlock
Solid and reliable lock with a single keyed deadlocking action that moves 1-1/8″ with one turn of the key.
- Secure – Stainless steel deadbolt which moves 1-1/8″ with one turn of the key.
- Adaptable – Deadbolt is adjustable in length for precise fitting on site.
- Keyed both sides for easy access
- Lock case is made from 1/8″ steel.

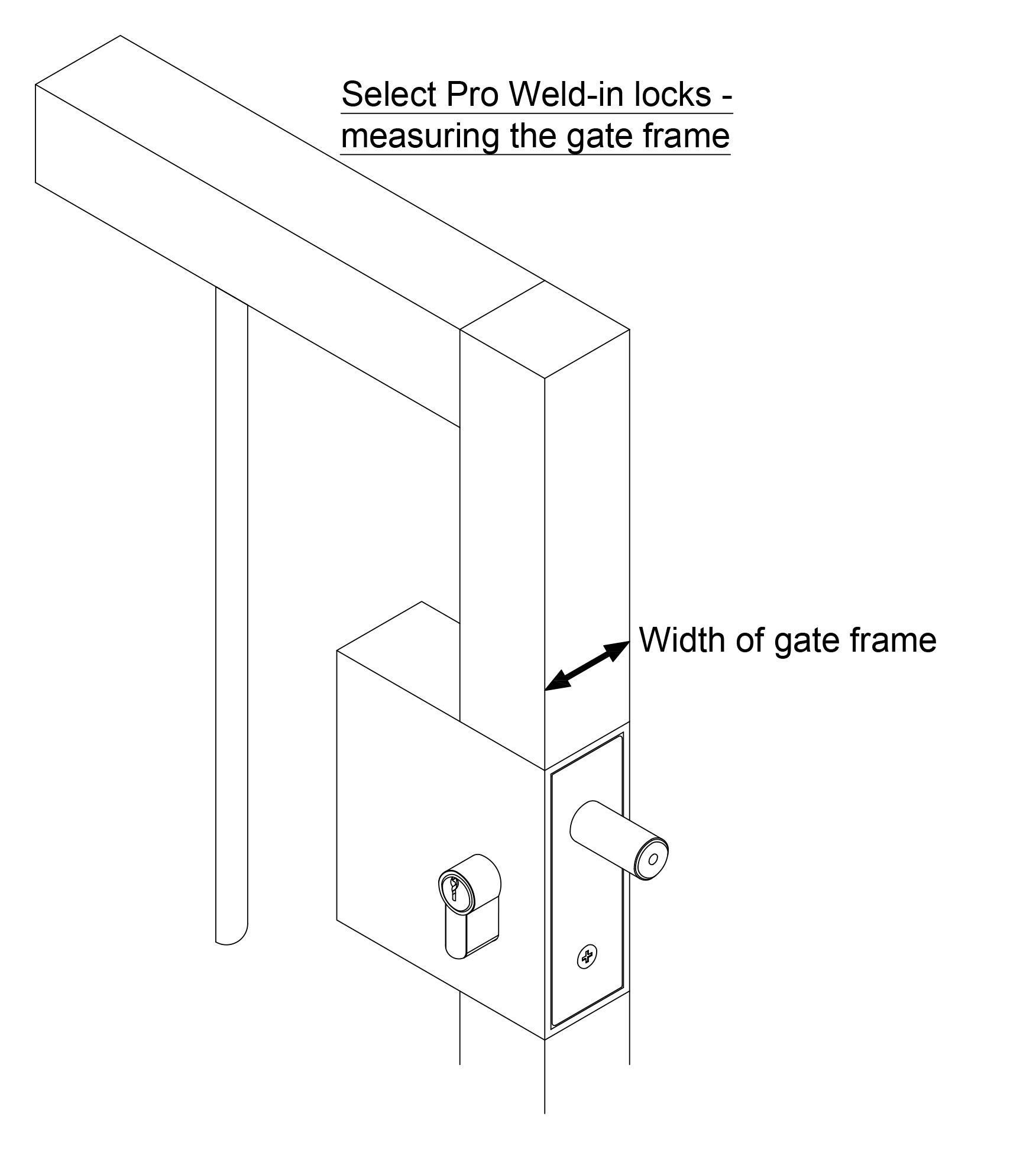

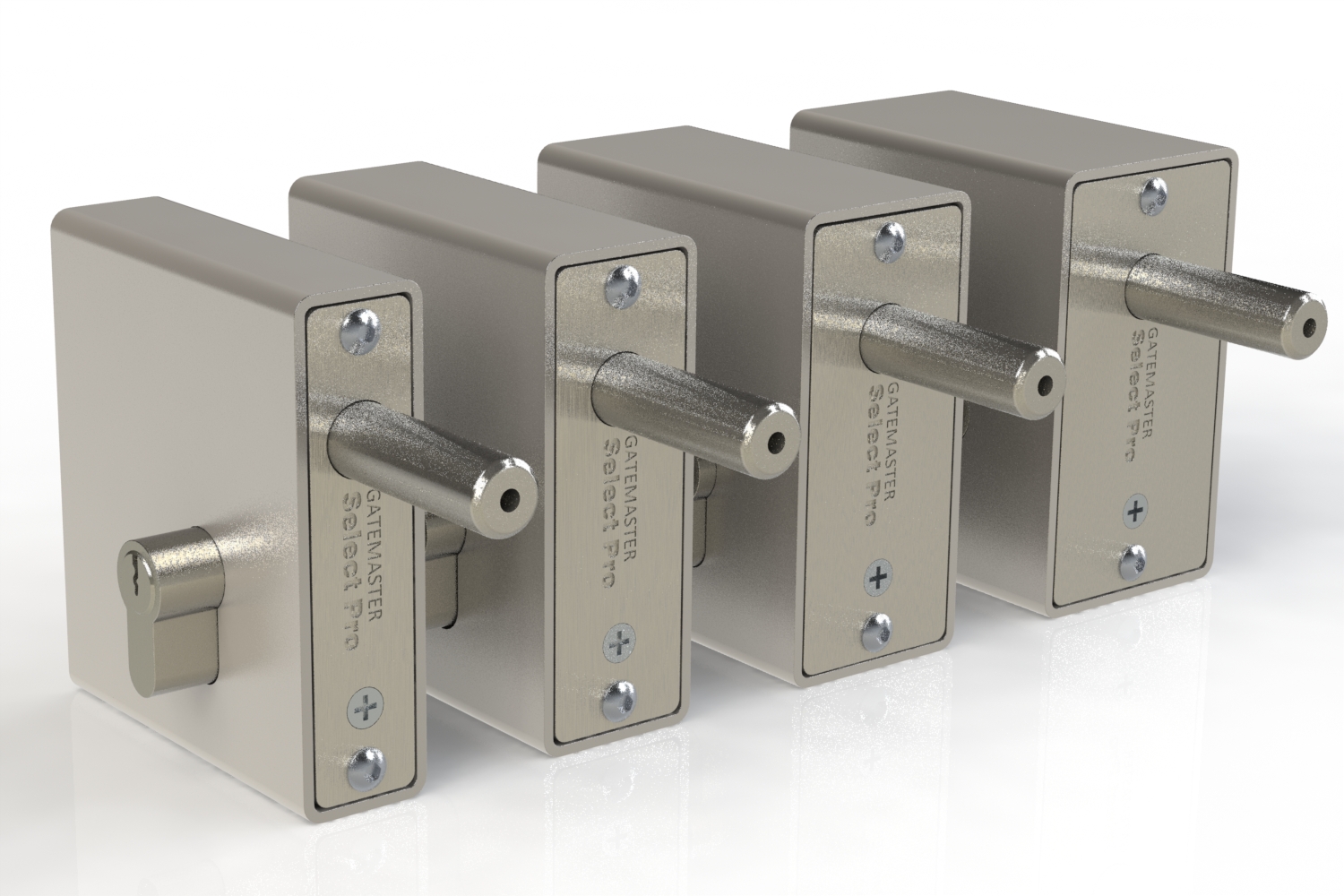

- 4 lock case widths available to suit different square tube sizes – 1-1/8″, 1-5/8″, 2″ and 2-3/8″.
Product Code
SWD1630 – 1-1/8″ wide gate stiles
SWD1640 – 1-5/8″ wide gate stiles
SWD1650 – 2″ wide gate stiles
SWD1660 – 2-3/8″ wide gate stiles
