The industrial heavy-duty gate hinge: 3 different ways to use our Superhinge

If you aren’t familiar with our Superhinge, it is our industrial heavy-duty hinge. This low-friction metal hinge was developed specifically for heavy gates and features brass washers and grease points to facilitate a smooth closing action. Sounds good?

The Gatemaster Superhinge is the ultimate heavy-duty metal gate hinge, designed for steel gates that require exceptional durability. The ultra-smooth operation makes it the ideal solution for heavier manual and automated metal gates

To showcase the strength and versatility of the Superhinge, scroll along to see some recent case studies where it was used on different gates.

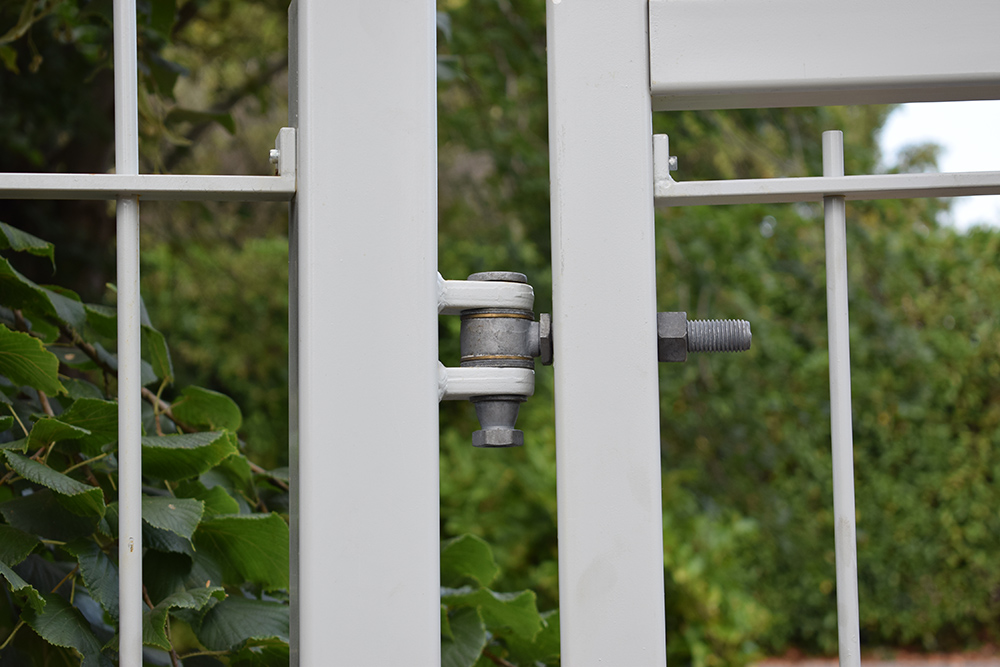

The Superhinge industrial heavy duty hinge with grease points and adjustable bolt hinge
Heavy duty industrial hinge welded into gate frame at commercial gate
Industrial anti-corrosion adjustable hinge with grease points and brass washers.

Hinges for heavy gates

Ornamental metal work is becoming extremely popular for commercial gates and fences. Intricate designs in cut-out metal panels make the service entrance to a restaurant a 5-star experience in itself. But these can be heavier than your standard mesh or metal bar gate. This means they of course need an industrial heavy-duty hinge that can carry this added weight.

Unlike standard metal gate hinges, the Superhinge’s brass bearings reduced wear, ensuring longevity despite frequent use. The weld-on gate hinge design also means a more secure, long-lasting installation—perfect for a high-traffic commercial setting.

That was exactly why Lauda Fabrications chose to use the Superhinge for these ornate metal panel gates for a restaurant in Birmingham. The Superhinge provided the reliable and low friction close they were after.

This project also used our Superlock Quick Exit Digital Access lock!

Superhinge sizeMax weight limit for a pair of hinges
SH16Up to 150 kg gates (2 hinges)
SH20Up to 300 kg gates (2 hinges)
SH25Up to 450 kg gates (2 hinges)
SH 30Up to 900 kg gates (2 hinges)

Ornate metal gate installed on a restaurant staff entrance.
Bronze coloured detailed metal gate with heavy duty industrial hinges and quick exit panic gate lock
Open gate with industrial adjustable hinges

For fabricators and installers working on ornate heavy metal gates, choosing the right steel gate hinges is crucial to ensure durability, security, and seamless movement. The Superhinge delivers on all fronts, making it the go-to choice for premium metalwork installations.

Tamper-proof metal gate hinges

When securing restricted areas, heavy-duty metal gate hinges need more than just strength, they must also be resistant to tampering. The Superhinge is designed with security in mind.

The Superhinge is also practical to use for locations that need to be extra secure. This industrial heavy-duty hinge is equipped with tamper proof sheer-off nuts. Once tightened, the bolt head will break off, leaving only a cylindrical end. This is incredibly difficult to remove, making the hinges more tamper proof.

This hinge can therefore be used on locations like the below, where back access needs to be secured.

grey metal gate in front of access door with heavy duty industrial hinges
Grey mesh gate to stop access to a leisure centre with deadlock and heavy duty hinges installed
Another expert job by Lauda Fabrications
heavy duty industrial gate hinge on grey metal gate

Whether securing a high-traffic commercial entrance or a remote industrial facility, the Superhinge combines strength, durability, and tamper resistance. Its weld-on design, brass bearings, and shear-off nuts make it the ultimate heavy-duty gate hinge for security-focused applications.

Hinges for bi-folding gates

Bi-folding gates are usually automated and heavy due to the multiple gate leaves used to create the bi-fold action. This means these gates are heavier than your standard industrial gates and need some extra hefty industrial heavy-duty hinges to function smoothly.

A prime example is the below bi-folding gate from Hill Trident, which was used for a site entrance. The entrance is very wide to help facilitate lorries turning after delivering. You can read more about this case study on bi-fold gates here.

Large green bi-fold gate with palisade fencing using industrial hinges.
Man in high vis vest in front of large green metal bi fold gate with industrial hinges
gate post and folded gate showing the heavy duty industrial gate hinges used.

The steel gate hinge design is engineered for high-traffic areas such as warehouses, industrial sites, and security fences. The weld-on hinge fixing ensures a secure and permanent fit, while the brass bearings allow for maintenance-free operation.

If you want all the details, have a look at the Superhinge product page where you will find the technical drawings, measurements, and everything you could want before using this hinge.
